CDATA GPON OLT FD1604S-B0, 1x GPON, 4x GE, 4x SFP, 2x 10GE ports, Rack-mounted, Dual Power

Sold out
Original price $1,390.00
Original price $1,390.00 - Original price $1,390.00
Original price $1,390.00
Current price $1,158.33
$1,158.33 - $1,158.33
Current price $1,158.33
by CData
SKU FD1604S-B0-NDA0
Availability:
Out of stock

4PON PORTS GPON OLT FD1608S-B0

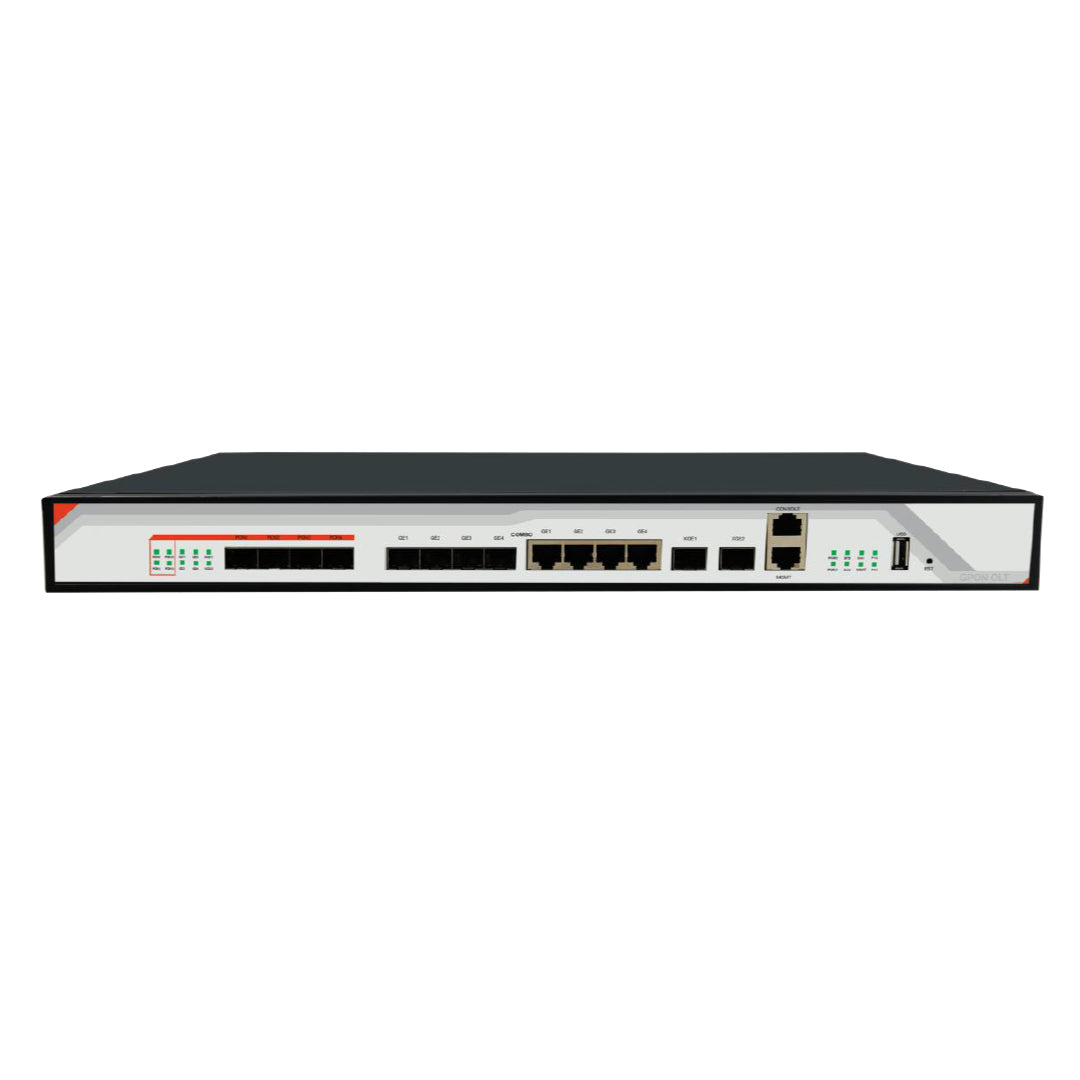

GPON OLT FD1604S-B0 completely meet relative standard of ITU G.984.x and IEEE 802.3x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2*10GE uplink ports and 4 GPON ports. Each GPON port supports the splitting ratio of 1:128. GPON system support 512 terminals accessing in for the most.

This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.

Functional Feature

- Meet ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry

- Support OMCI Protocol

- 1U height 4PON OLT product in compact design of Pizza-Box

- Complete PON protection switching function

- Layer 2 Switching Function

OLT equips with very powerful layer 2 Full Wire Speed Switching and completely supports layer 2 protocol. OLT supports varieties of layer 2 functions like TRUNK, VLAN, LACP, rate limit, port isolate, queue technology, flow control technology, ACL and so on, which provides technical guarantee for the development of multi-service integrated.

- QOS Guarantee

GPON Products maintains fully-improved DBA with excellent QoS service capabilities. DBA meets different Qos requirements from different service flow in latency, jitter, packet loss rate.

- Easy-to-Use Management System

Support management method of CLI, WEB, SNMP, TELNET, SSH and meet OMCI standard, through OMCI channel protocol service management can be realized, including ONT function parameter set, T-CONT business lines and amount, QoS parameters, configuration information request, performance statistics,

auto-reporting of running events in system, configuration for ONT from OLT, fault diagnosis and management of performance and safety.
