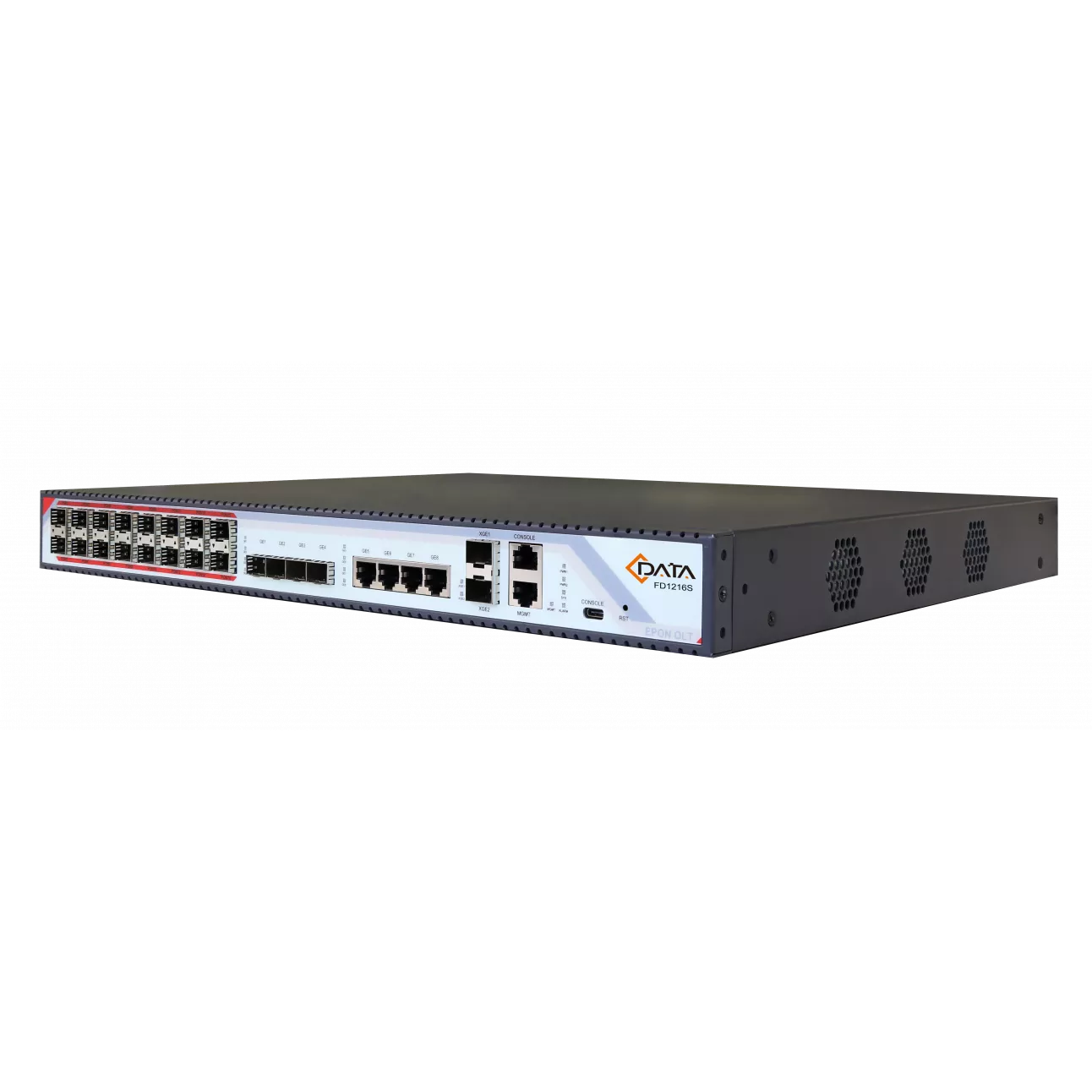

CDATA GPON OLT FD1616S-B0, 16x GPON, 4x GE, 4x SFP, 2x 10GE ports, Rack-mounted, Dual Power

Sold out
Original price $2,980.00
Original price $2,980.00 - Original price $2,980.00
Original price $2,980.00
Current price $2,483.99
$2,483.99 - $2,483.99
Current price $2,483.99
by CData
SKU FD1616S-B0-NDA0
Availability:
Out of stock

GPON OLT FD1616S-B0 completely meets the relative standard of ITU G.984.x and FSAN, with a 1U rack-mounted device with1 USB interface, 4 uplink GE ports, 4 uplinks SFP ports, 2 10-gigabit uplink ports, and 16 GPON ports. Each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps. The system is supportive of the accessing of 2048 GPON terminals.

This product has a high performance, and compact size is convenient and flexible to use and is easy to deploy, which meets the compact server room’s requirements in device performance and size. Moreover, the product has a good promotion of network performance that improves reliability and reduces power consumption. C-Data GPON OLT FD1608S-B0 applies to the three-in-one broadcast television network, FTTP (Fiber to the Premise), video monitoring network, enterprise LAN (Local Area Network), internet of things, and other network applications with a very high price/performance ratio.

Product Features

  • Meet the relative standard of ITU-T G.984/G.988 and GPON in the Chinese Communication Industry
  • Supportive of OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol
  • 1U height 16PON OLT product in the compact design of Pizza-box
  • A complete PON protection switching function
  • Layer 2 switching function

OLT equips with compelling layer 2 full wire-speed switching. It supports the layer 2 protocol out and varieties of layer 2 functions such as TRUNK, VLAN, rate limit, port isolate, queue technology, flow control technology, ACL, and so on, which provides a technical guarantee for the development of multi-service integrated.

  • QOS Guarantee

GPON products maintain a fully-improved DBA with excellent QOS service capabilities. DBA meets different QOS requirements from different service flows in latency, jitter, and packet loss rate.

  • Easy-to-Use management system

Supportive of CLI, WEB, SNMP, TELNET, SSH, and meets OMCI standard. Through OMCI channel protocol, service management can be realized, including the ONT function parameter set, T-CONT business lines and amount, QOS parameters, configuration information request, performance statistics, auto-reporting of running events in the system, configuration for ONT from OLT, and fault diagnosis and management of performance and safety.

Item FD1616S-B0
Management

Rack

Type 1U 19-inch standard box
Uplink Port COMBO port 4 10/100/1000M auto-negotiation Ethernet ports
4 SFP interfaces
10-Gigabit 2 SFP+ interfaces
PON Port Quantity 16
Physical interface SFP slot
Interface type ITU-TG.984.2 Class B+/Class C+
Max splitting ratio 1:128
Management Port 1  100/1000BASE-Tx out-band Ethernet port

1  CONSOLE local management port

USB Port 1 USB interface (It’s used to backup configuration, upgrade program, and record log information)
PON Port attribute Transmission distance 20KM
Port rate Downstream: 2.5Gbps      Upstream: 1.25Gbps
Wavelength Forwarding: 1490nm       Receiving: 1310nm
Interface type SC/UPC
Fiber type 9/125μm SMF (Single Mode Fiber)
Light transmission power Class B+  +1.5~+5dBm Class C+  +3~+7dBm
Receiving sensitivity Class B+  -28dBm Class C+  -30dBm
Saturation power Class B+  -8dBm Class C+  -12dBm
Network management method Support CLI、SNMP、TELNET、SSH、WEB
Business capabilities Ø Support device log, device upgrade, device management, condition monitoring, configuration management, and user management.

Ø Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on.

Ø PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.

Ø Layer 3 function: support static routing, dhcp-relay and vlanif configuration

Backplane Bandwidth 108G
Size 440mm(L)*288mm(W)*44mm(H)
Weight 5kg
Power supply 220VAC AC: 90V~240V,47/63Hz
-48DC DC:-36V~-72V
Maximum power 70W
Working environment Working temperature -15~50℃
Storage temperature -40~85℃
Relative humidity 5~90% (Non-condensing)
