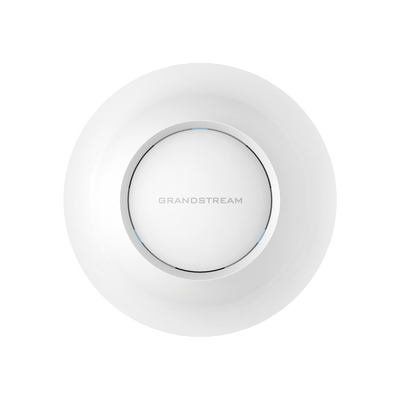

The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium-sized businesses, multiple floor offices, commercial locations, and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN. Cloud, Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voiceover-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP, and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas 4 dual-band internal antennas, beamforming support 2.4GHz, gain 4dBi, 5 GHz, gain 5dBi
Frequency Bands 2.4GHz radio: 2412 - 2484 GHz / 5GHz radio: 5180 - 5825 GHz
Coverage Range Up to 175 meters *coverage range can vary based on the environment
WiFi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot, and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
Concurrent Clients 200+

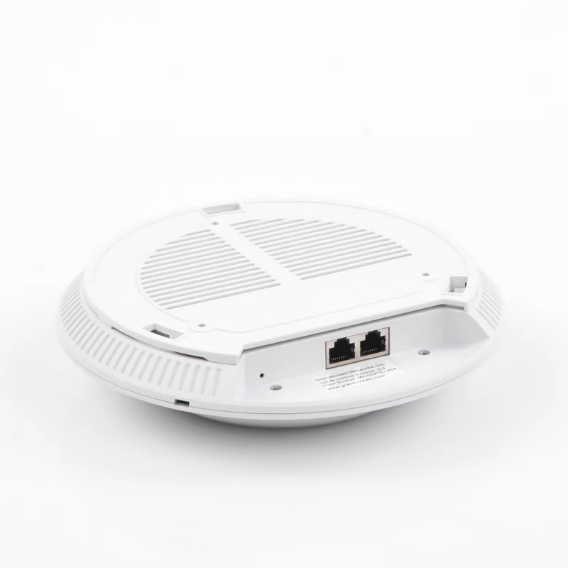

Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
