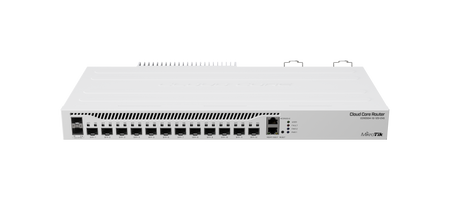

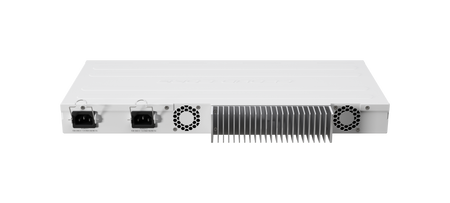

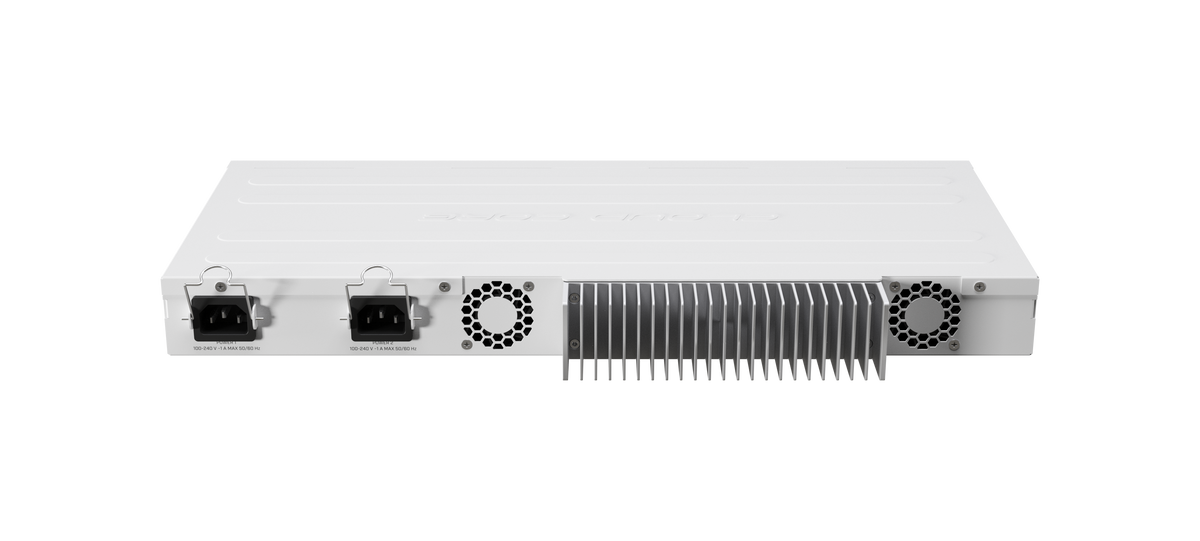

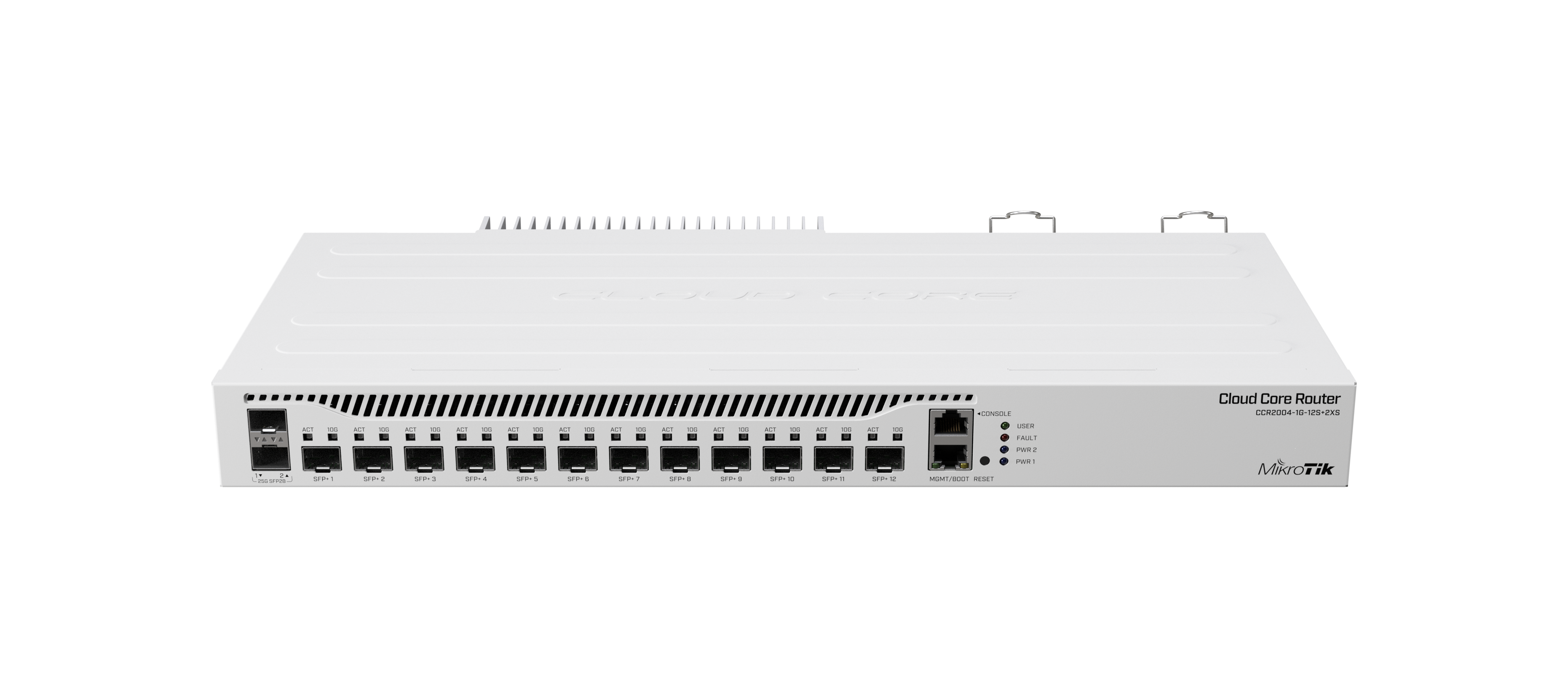

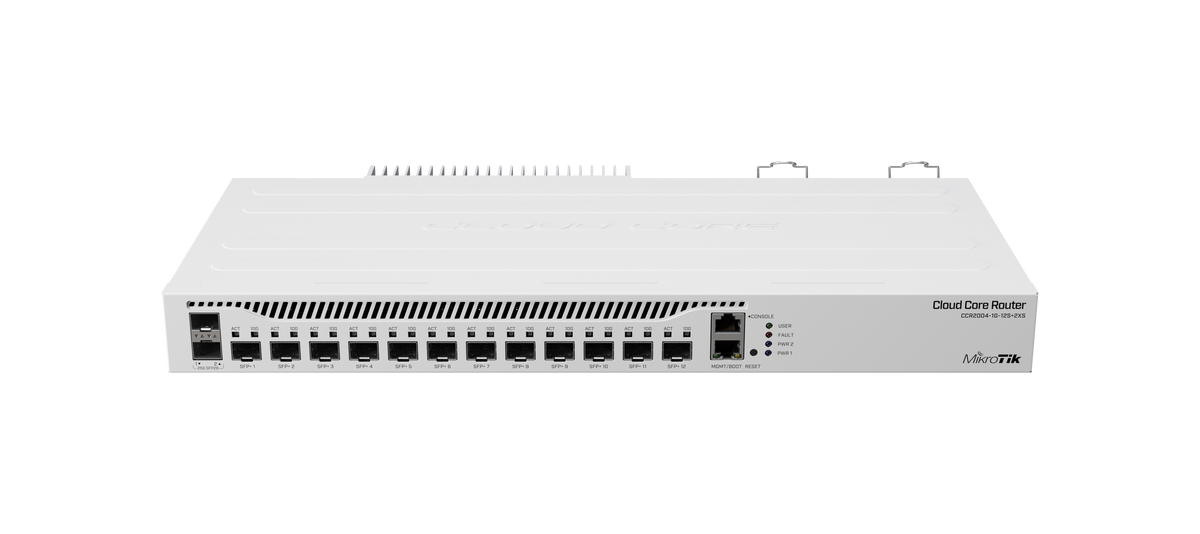

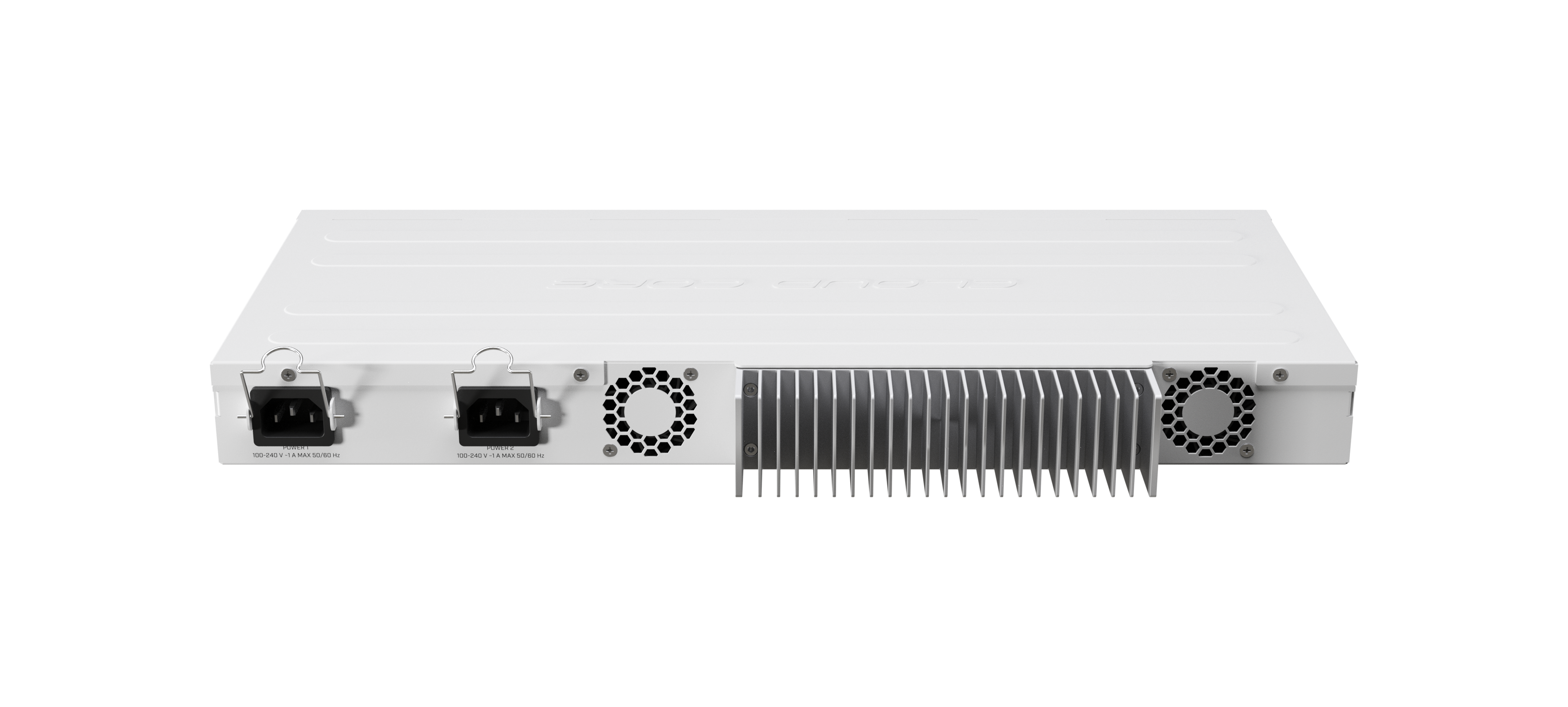

Mikrotik Cloud Core Router 2004-1G-12S+2XS with Annapurna Alpine AL32400 CPU (4-cores, 1.7GHz per core), 4GB RAM, 1x GLAN, 12x 10G SFP+ cages, 2x 25G SFP28 cages, RouterOS L6, 1U rackmount case, Dual PSU.

Original price $725.00 - Original price $725.00
Original price
$725.00
$725.00 - $725.00
Current price $725.00
SKU CCR2004-1G-12S+2XS
Availability:
Only 4 left!

Specifications

Details
Product code CCR2004-1G-12S+2XS
Architecture ARM 64bit
CPU AL32400
CPU core count 4
CPU nominal frequency 1700 MHz
Dimensions 443 x 224 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 49 W
Max power consumption without attachments 32 W
Cooling type 2 fans

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP+ ports 12
Number of 25G SFP28 ports 2

Peripherals

Details
Serial console port RJ45

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20


Included parts


  • 2x IEC cords

  • Screw and feet kit (K10)

  • Rackmount bracket white

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
