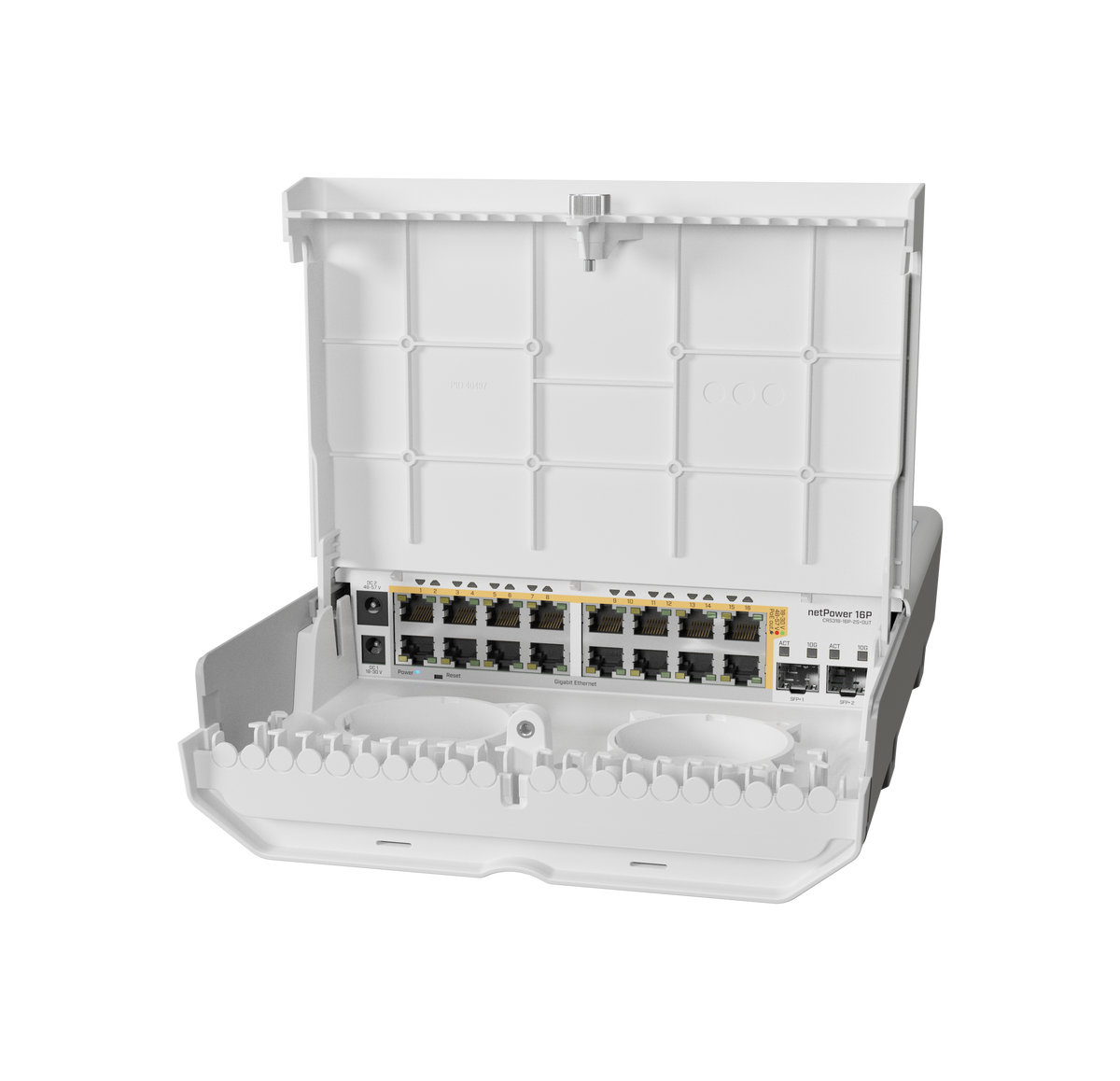

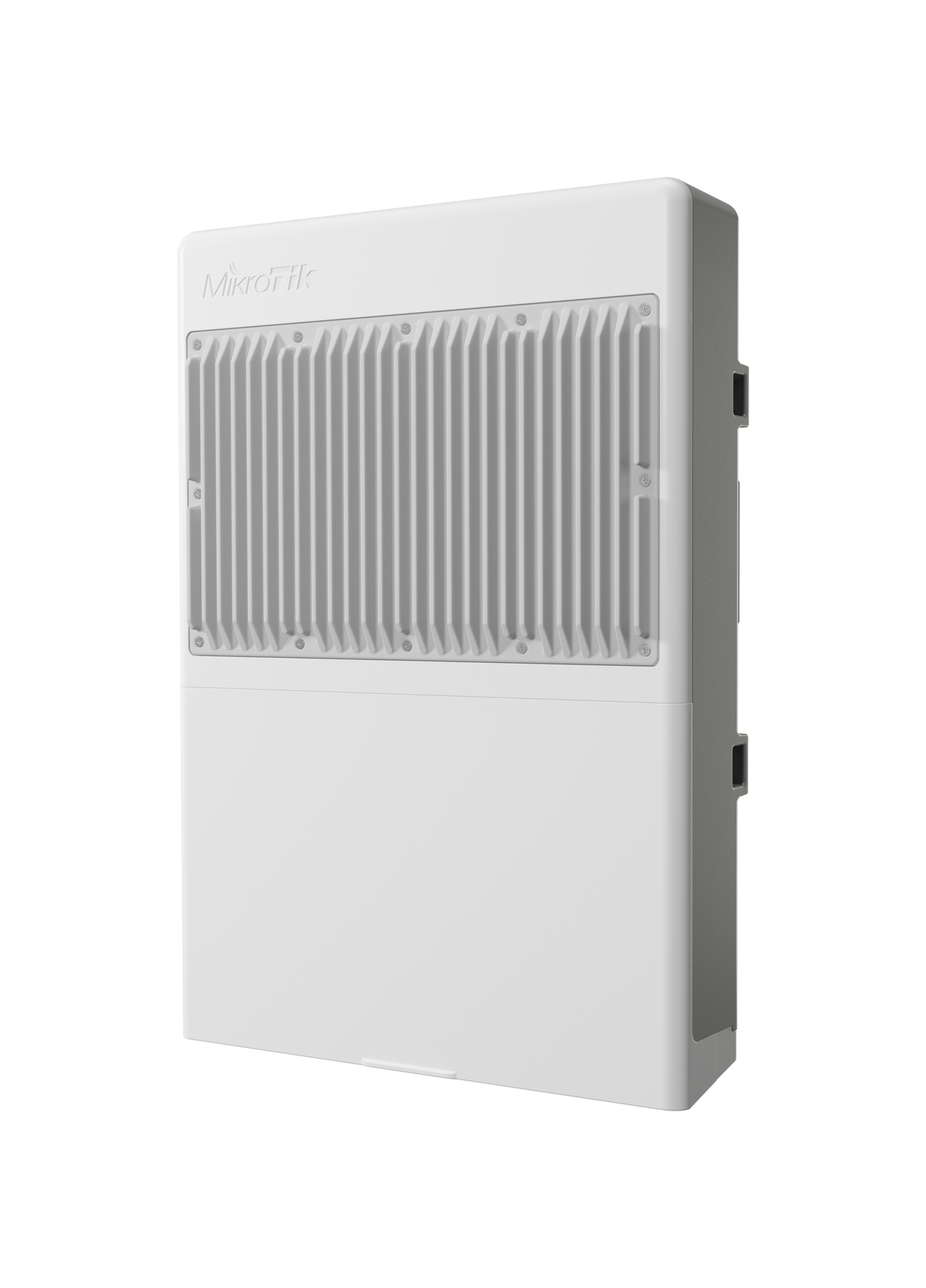

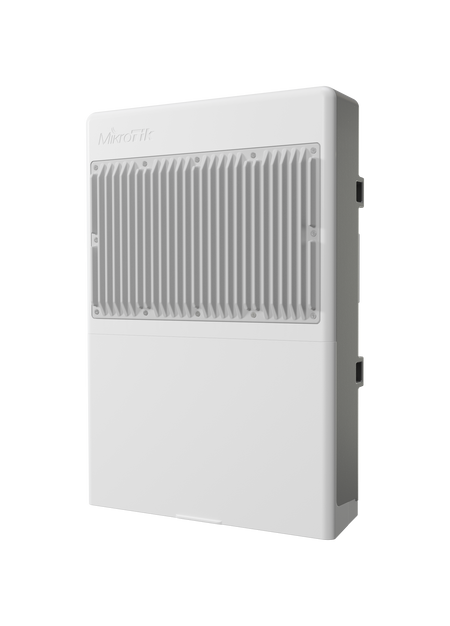

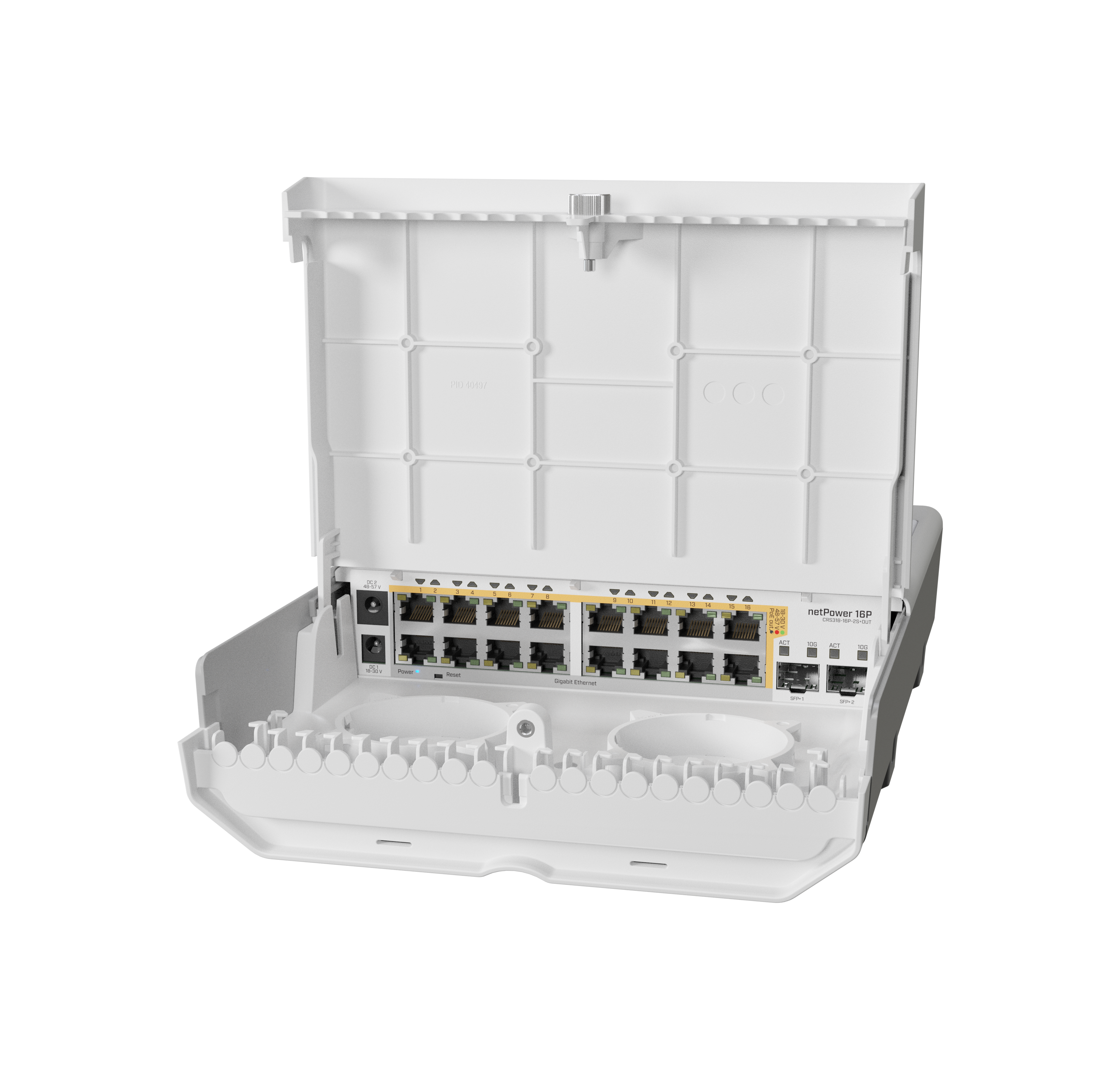

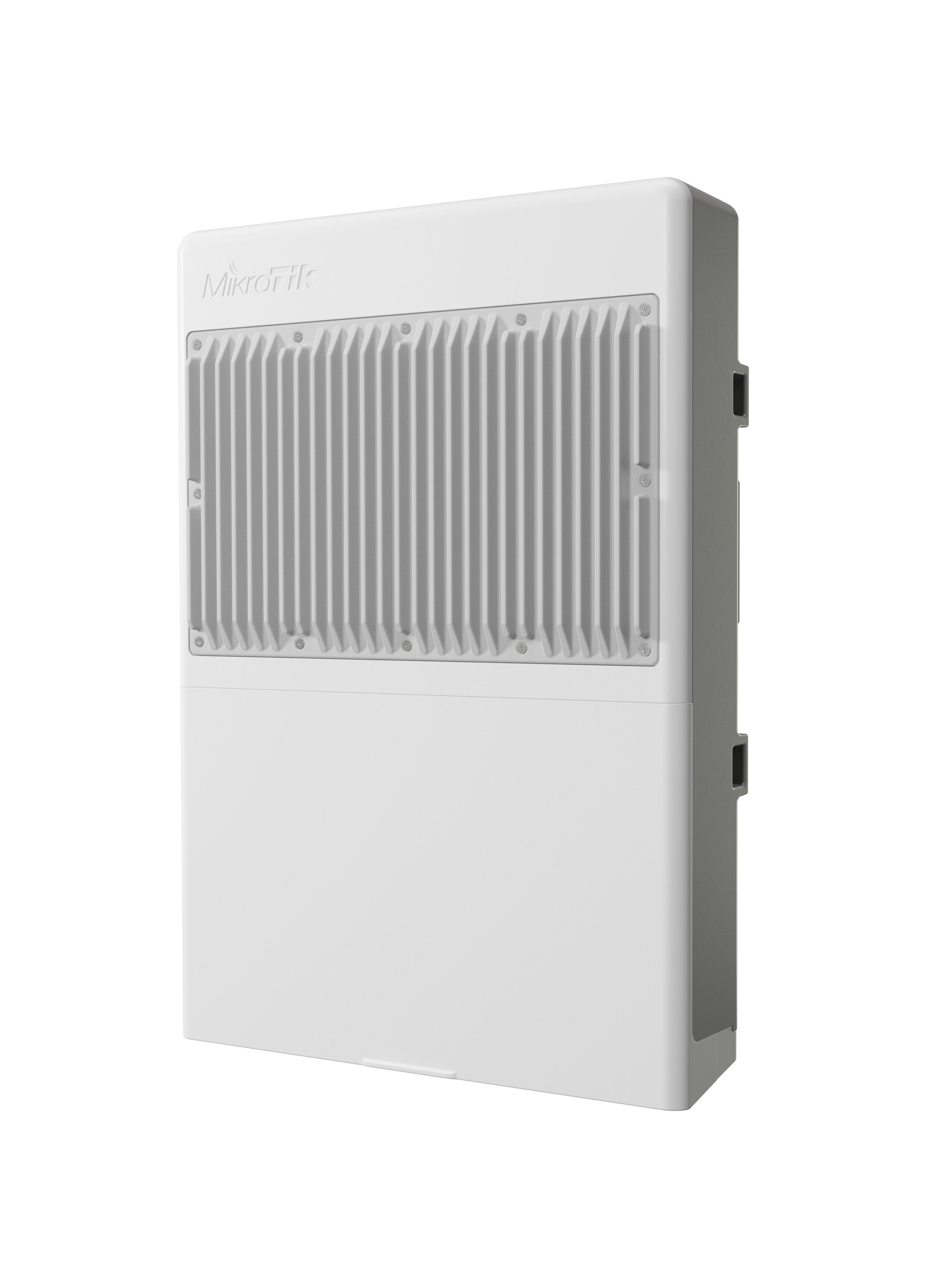

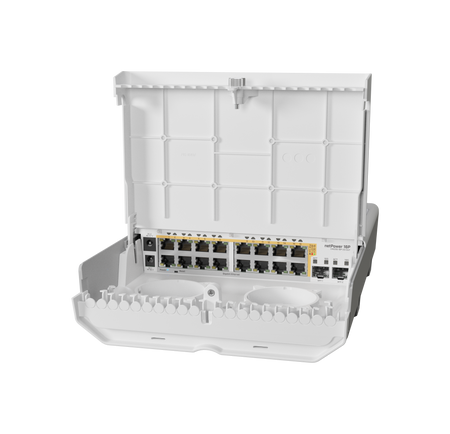

Mikrotik Cloud Router Switch 318-16P-2S+OUT with 800MHz CPU, 256MB RAM, 16x GLAN w/PoE-Out, 2x SFP+ cages, RouterOS L5 or SwitchOS (dual boot), outdoor enclosure, mounting kit. Power supply Not included. Sale price while supplies last

Original price $375.00 - Original price $375.00
Original price
$375.00
$375.00 - $375.00
Current price $375.00
SKU CRS318-16P-2S+OUT
Availability:
Only 2 left!

Specifications

Details
Product code CRS318-16P-2S+OUT
Architecture ARM 32bit
CPU 98DX226S
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model 98DX226S
Dimensions 303 x 212 x 78 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 2 (DC jack)
DC jack input Voltage 18-30 V / 48-57 V
Max power consumption 316 W
Max power consumption without attachments 16 W
Cooling type Passive

PoE-out

Details
PoE-out ports Ether1-Ether16
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1.1 A
Max out per port output (input 30-57 V) 0.6 A
Max total out (A) 2.8A (18V-30V) & 1.4A (48V-57V) x2 A

Ethernet

Details
10/100/1000 Ethernet ports 16
Number of 1G Ethernet ports with PoE-out 16

Fiber

Details
SFP+ ports 2

Other

Details
CPU temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54


Included parts


  • Hose clamp 2

  • K-66 fastening set

  • DC to Terminal block adapter x2

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
