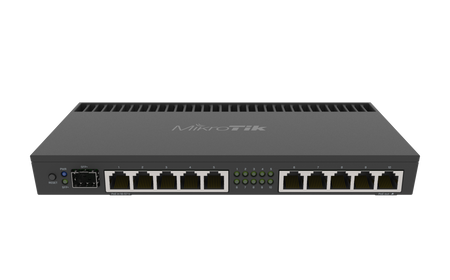

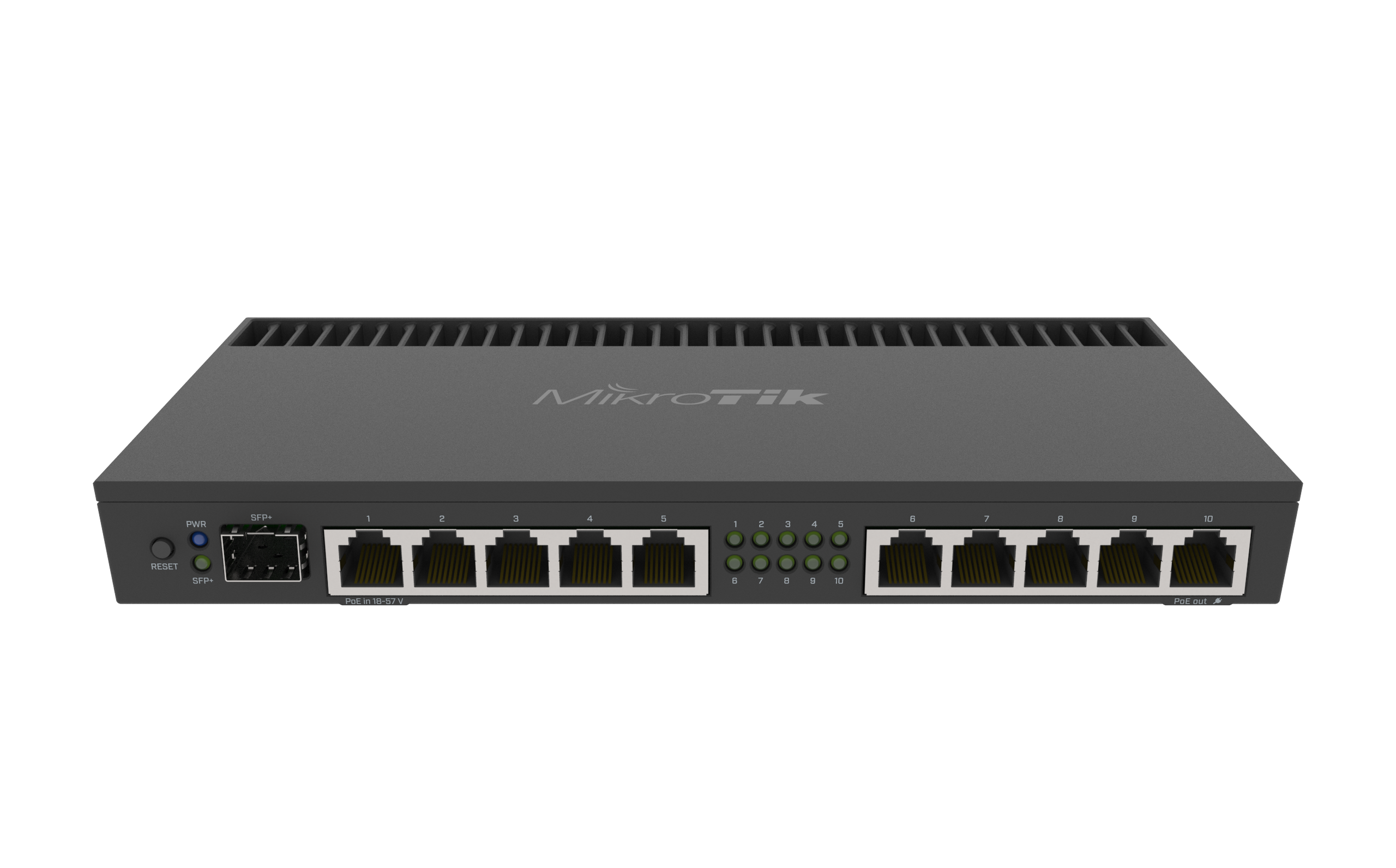

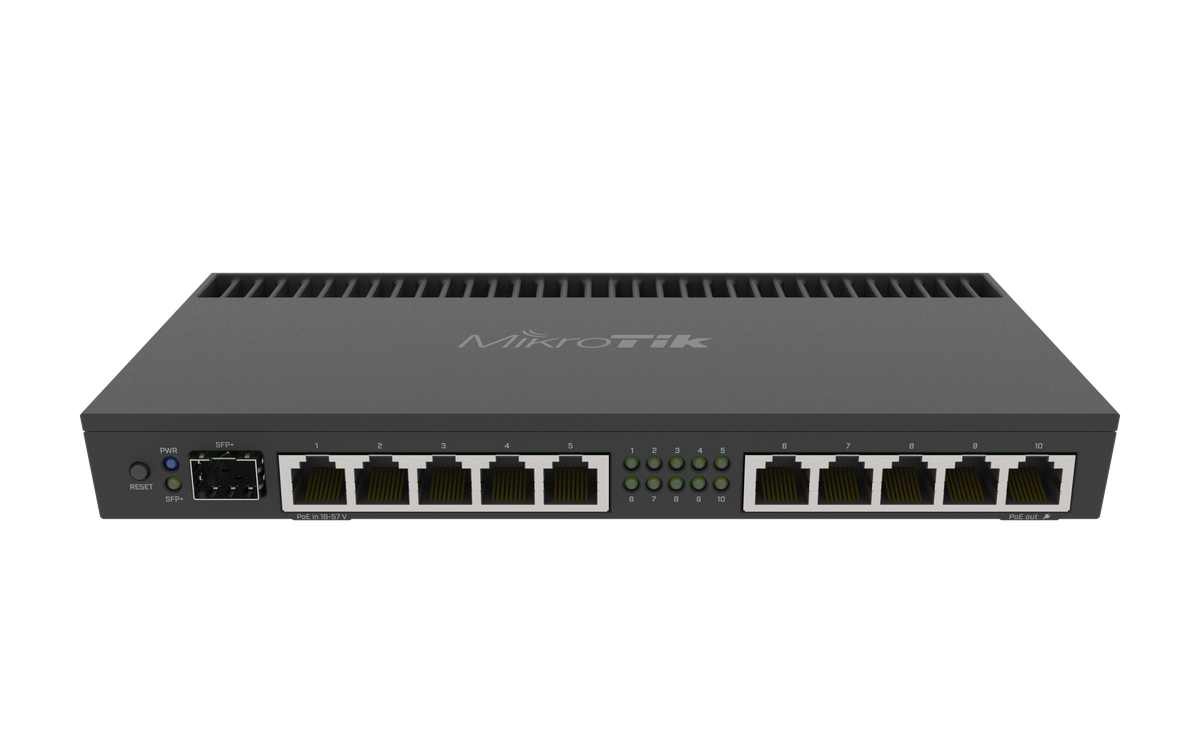

Mikrotik RouterBOARD 4011iGS+ with Annapurna Alpine AL21400 Cortex A15 CPU, 1GB RAM, 10x Gbit LAN, 1x SFP+ port, RouterOS L5, desktop case, rackmount ears, PSU.

Sold out
Original price $296.32 - Original price $296.32
Original price
$296.32
$296.32 - $296.32
Current price $296.32
SKU RB4011iGS+RM
Availability:
Out of stock

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

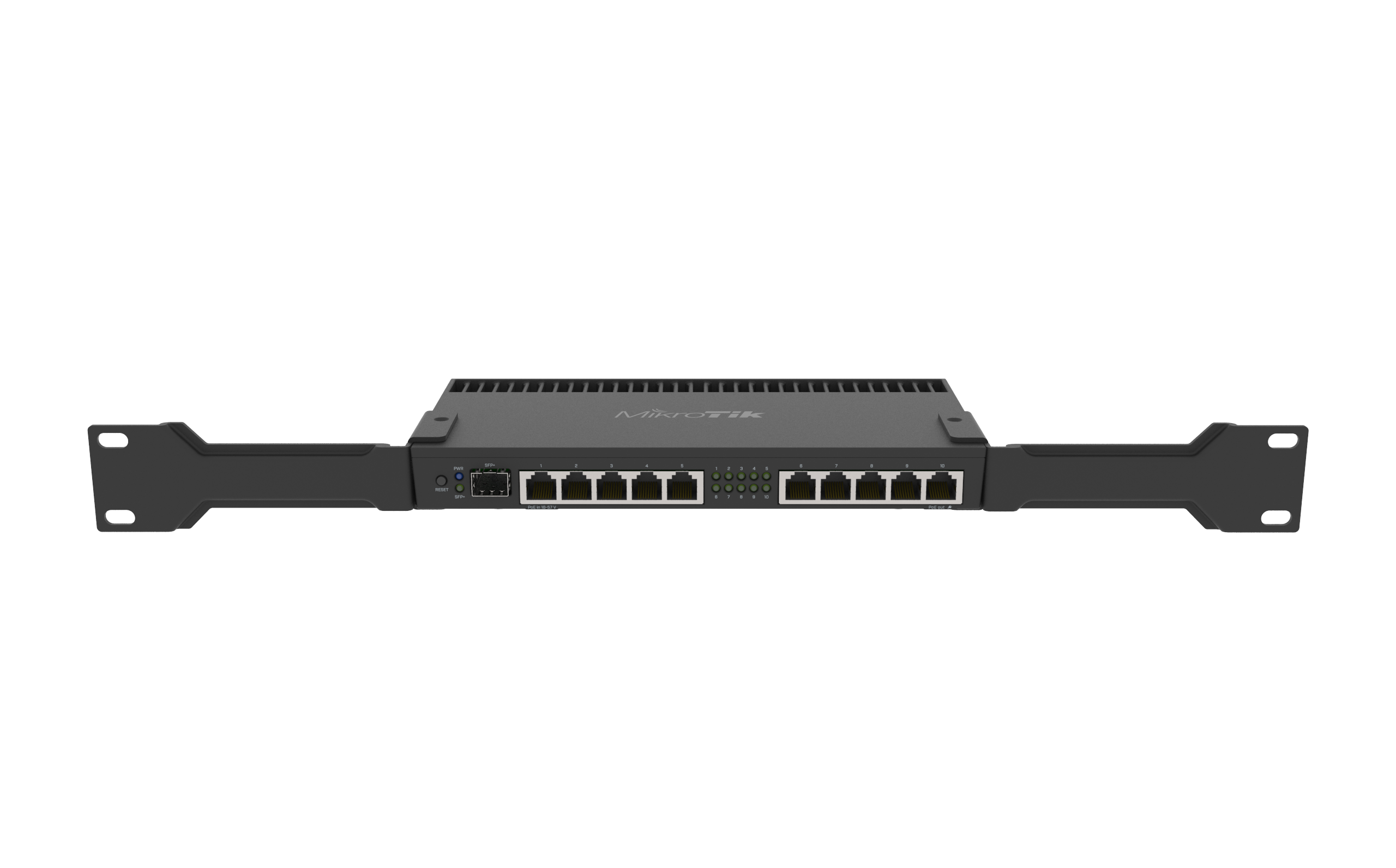

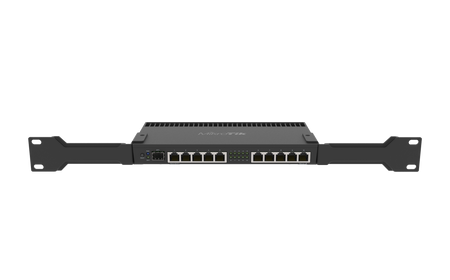

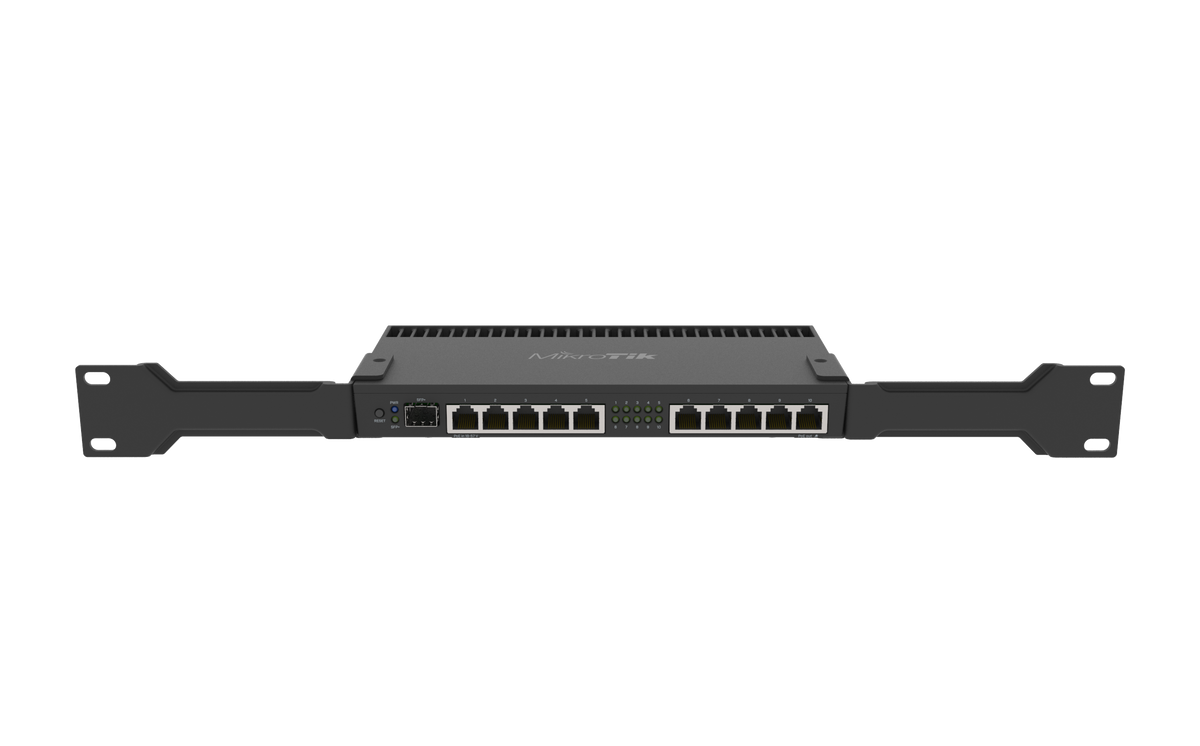

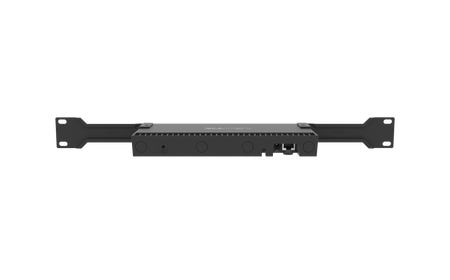

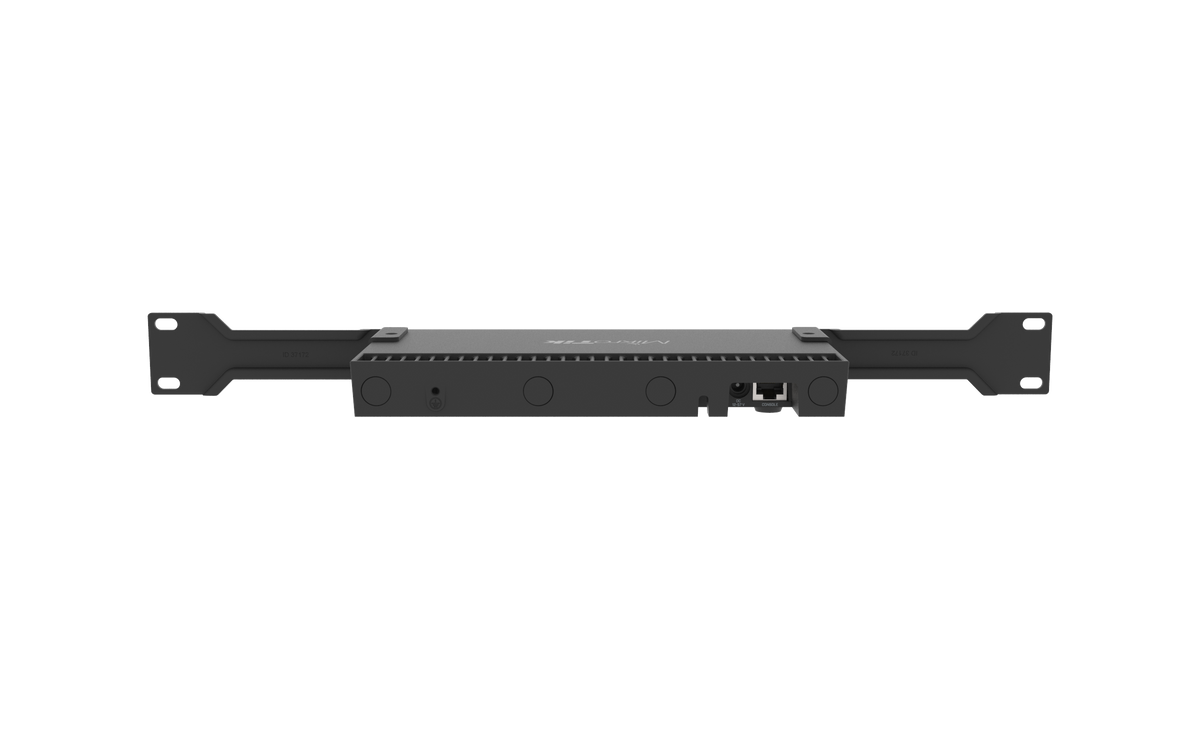

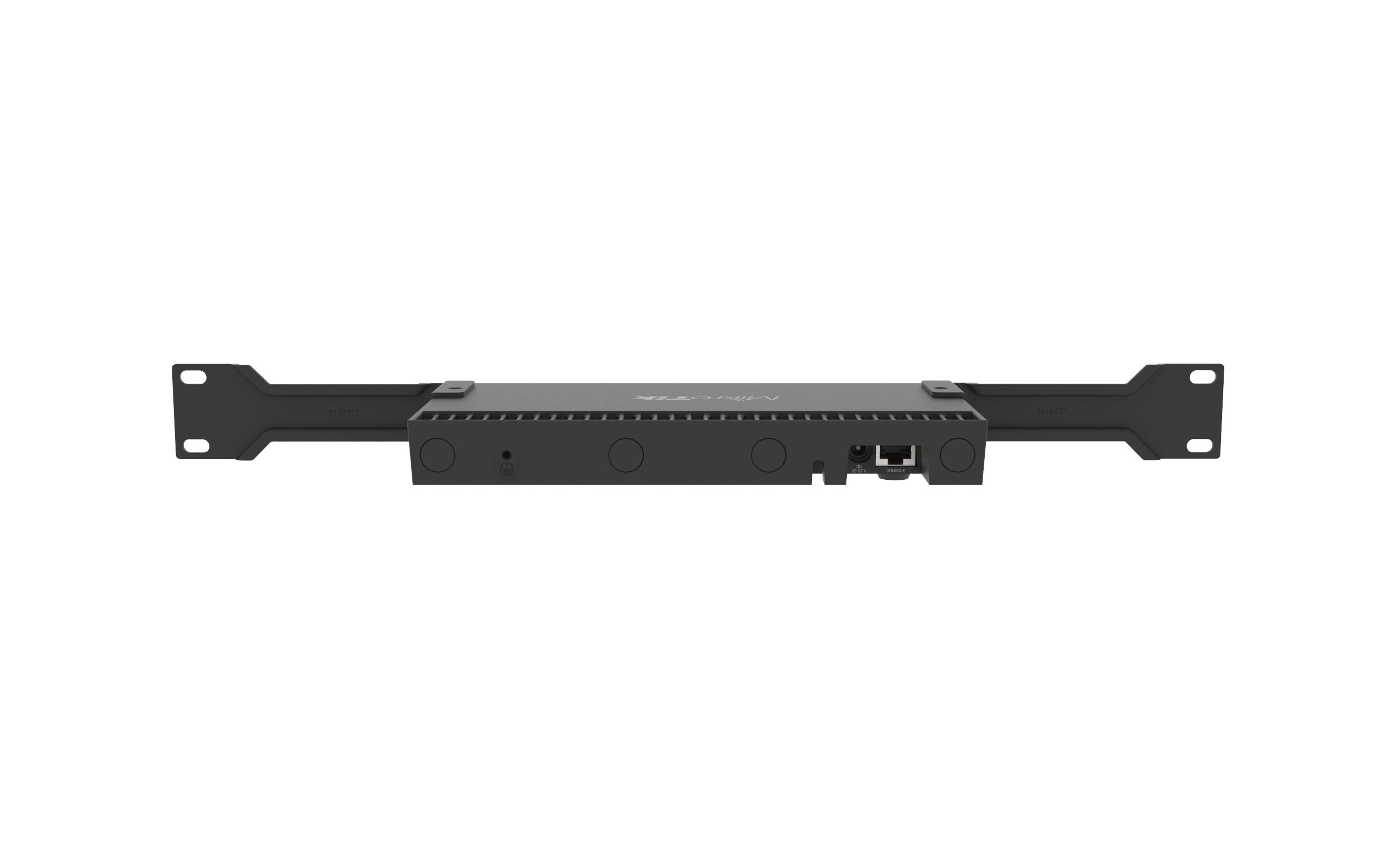

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.

Note: Passive DAC (MikroTik S+DA0001/S+DA0003) are not supported.

Specifications

Details
Product code RB4011iGS+RM
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1400 MHz
Dimensions 228 x 120 x 30 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 12-57 V
Max power consumption 33 W
Max power consumption without attachments 18 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-57 V

PoE-out

Details
PoE-out ports Ether10
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 420 mA
Max total out (A) 600 mA

Ethernet

Details
10/100/1000 Ethernet ports 10

Fiber

Details
SFP+ ports 1

Peripherals

Details
Serial console port RJ45

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20
