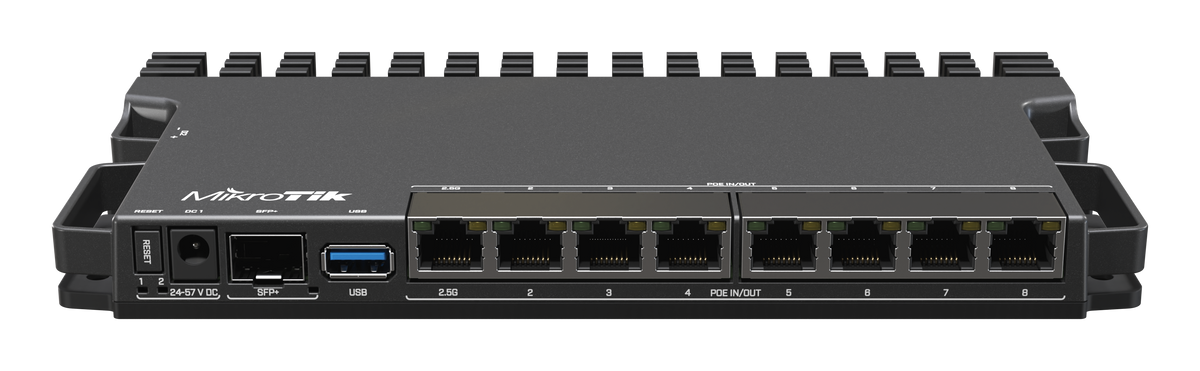

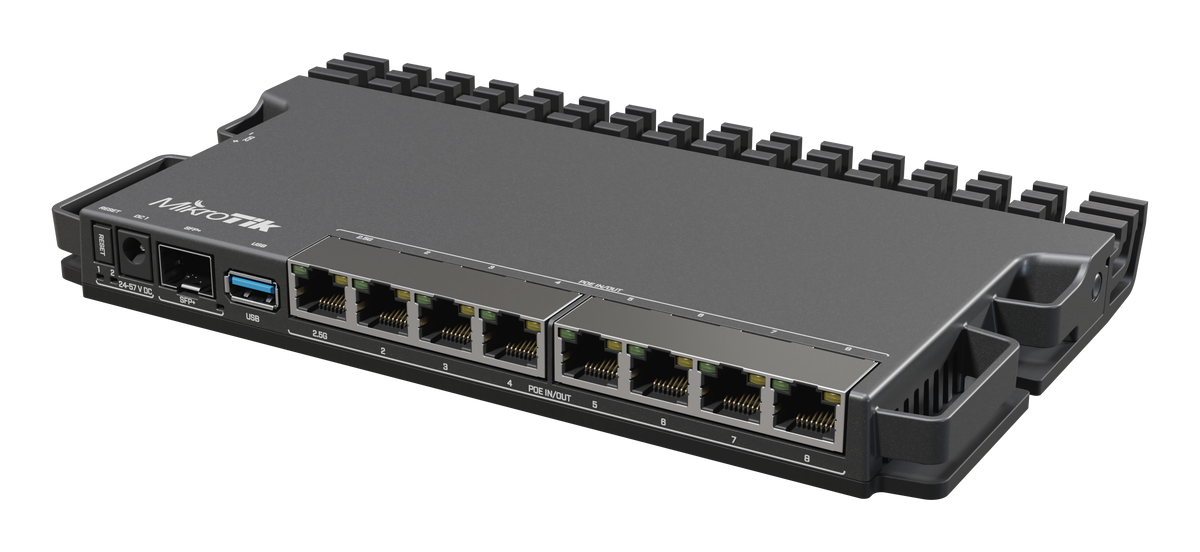

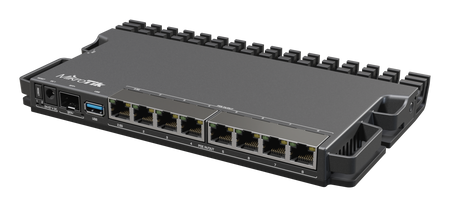

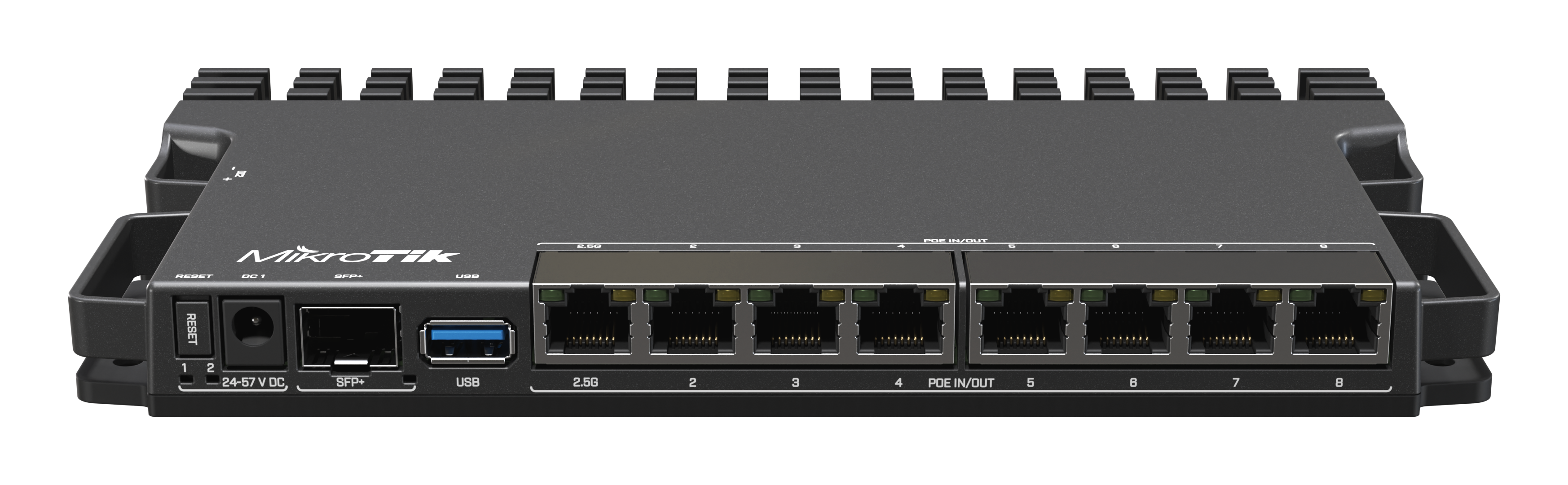

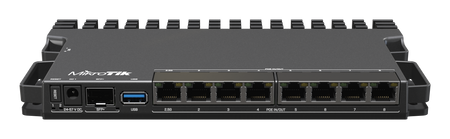

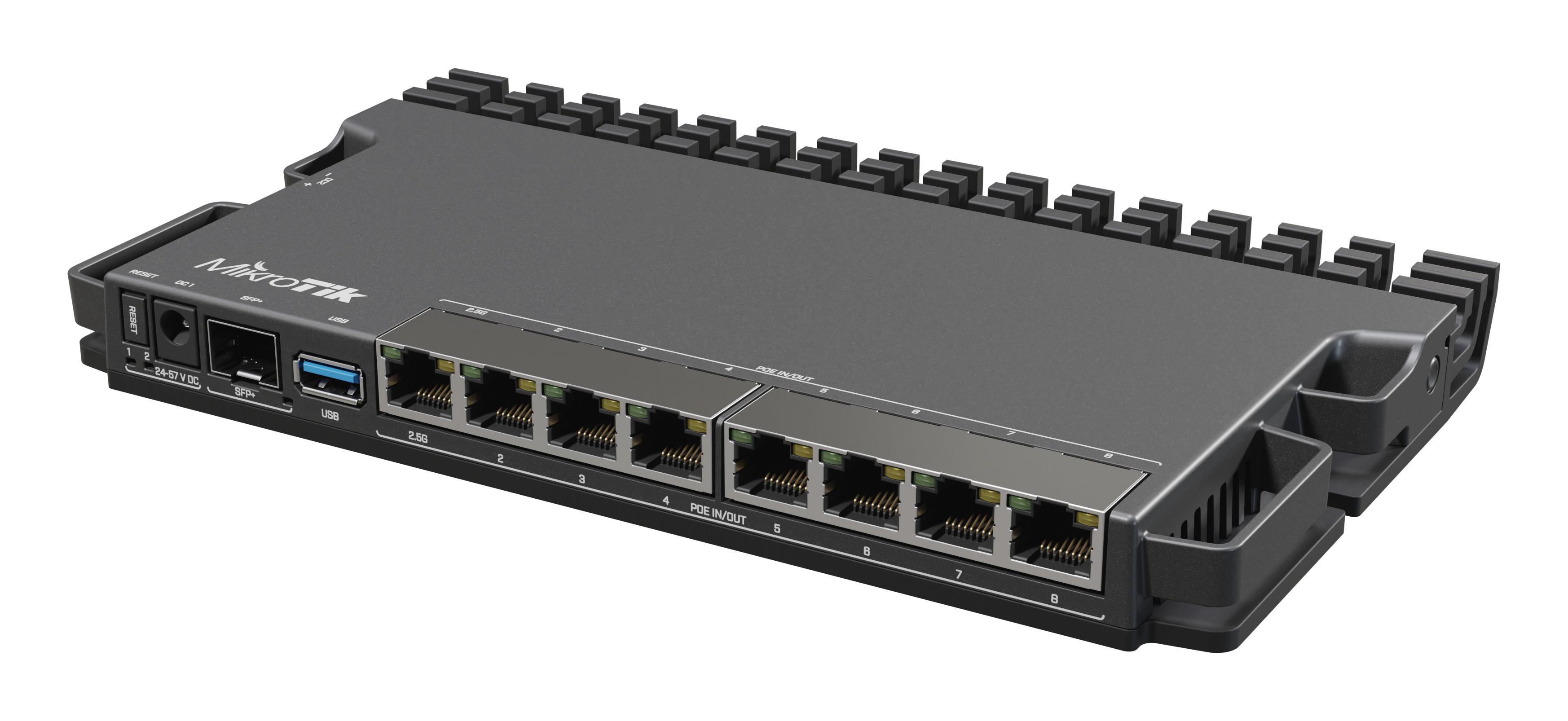

Mikrotik RouterBOARD 5009UPr+S+IN with Marvell Armada ARMv8 CPU, 1GB DDR4 RAM, 1GB NAND storage, 1x 2.5GLAN, 7x 1GLAN (802.3af/at PoE-Out & PoE-In), 1x SFP+ port, RouterOS L5, metal desktop case, PSU

Mikrotik RouterBOARD 5009UPr+S+IN with Marvell Armada ARMv8 CPU, 1GB DDR4 RAM, 1GB NAND storage, 1x 2.5GLAN, 7x 1GLAN (802.3af/at PoE-Out & PoE-In), 1x SFP+ port, RouterOS L5, metal desktop case, PSU

$375.00 - $375.00
$375.00
$375.00 - $375.00
$375.00
by Mikrotik
SKU RB5009UPr+S+IN
Availability:
Only 4 left!

Specifications

Details
Product code RB5009UPr+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 3 (DC jack, 2-pin terminal, PoE-IN)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 150 W
Max power consumption without attachments 16 W
Cooling type Passive
PoE in 802.3af/at (ether1), Mode B (ether2-ether8)
PoE in input Voltage 24-57 V

PoE-out

Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 900 mA
Max out per port output (input 30-57 V) 440 mA
Max total out (A) 2.59 A
Total output current 2.28
Total output power 130

Ethernet

Details
10/100/1000 Ethernet ports 7
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 2.5G Ethernet ports 1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) 1

Fiber

Details
SFP+ ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20


Included parts


  • K-55 screw kit

  • IEC cord

  • 48V2A96W

  • Connector plug

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
