RADWIN MultiSector HPMP HBS 5PG5 Dual Carrier Base Station Radio with Dual Sector Integrated Antenna, 5GHz, up to 1.5Gbps, 128 SUs supported, factory default 5.4GHz Universal

Sold out
Original price $2,875.00
Original price $2,875.00 - Original price $2,875.00
Original price $2,875.00
Current price $2,500.00
$2,500.00 - $2,500.00
Current price $2,500.00
by Radwin
SKU RW-5PG5-9154
Availability:
Out of stock

HPMP HBS 5PG5 Dual Carrier Base Station Radio with Dual Sector Integrated Antenna, 5GHz, up to 1.5Gbps, 128 SUs supported, factory default 5.4GHz Universal, RW5000/HBS-MS/5PG5/F54/UNI/INT

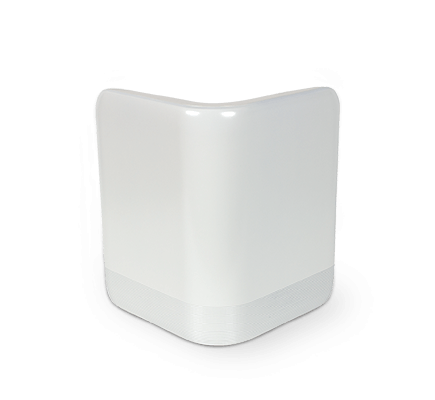

MultiSector Base Station with antenna (BS)

Providing up to 1.5Gbps, RADWIN MultiSector dual carrier PtMP base station includes a pair of integrated 90 ̊ antennas and connectors for optional external antennas (one per carrier).

An internal GPS receiver significantly reduces the risk of mutual interference with local or remote networks.

To enable best spectrum utilization when deployed in a wide network, MultiSector is designed to support frequency reuse 2, thus requiring only 2 channels per site.

RADWIN offers two MultiSector models: One serving 16 customers (upgradable by license key to 128) and the other supporting 128.

MultiSector highlights

  • »  1.5Gbps dual carrier base station

  • »  180 ̊coverageusingtwointegrated90 ̊sectorantennas

  • »  Up to 360 ̊ coverage using an add-on MultiSector Antenna unit or 3rd party external antenna

  • »  Built-in GPS

  • »  Optional self-backhaul, no need for a PtP radio

  • »  Single PoE or SFP port per site
