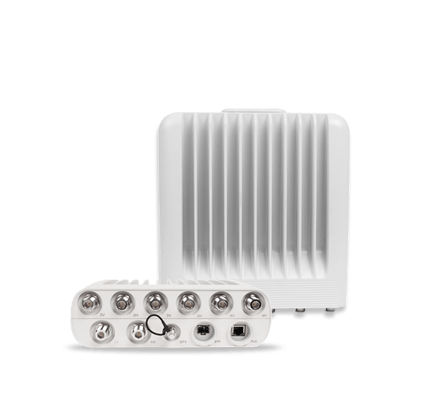

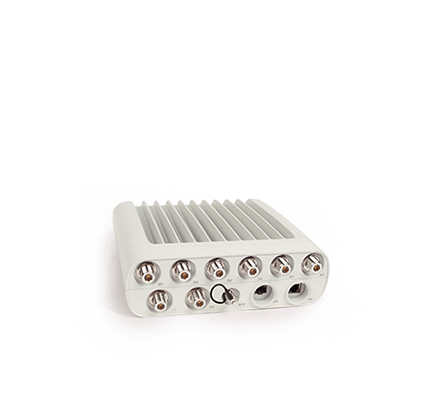

RADWIN MultiSector Connectorized is a dual carrier base station supporting up to 4 external sector antennas. The self- contained base station notably reduces site complexity and TCO while enabling deployment flexibility through the mix and match of different antennas for best performance per deployment use case.
The MultiSector solution is perfect for network operators planning to deploy multiple base station sites with varied sector sizes and coverage, as typically required in rural connectivity, safe city and oil & gas applications.
The MultiSector dual carrier base station delivers up to 1.5Gbps and enables connectivity of up to four MIMO 2x2 antennas, two antennas per carrier of 750Mbps. The self-contained base station includes a built-in layer-2 Switch that aggregates the dual carrier traffic and internal GPS antenna to significantly reduce mutual interference with local or remote networks.
The MultiSector base station can cover 4 sectors with only 2 frequencies. Each of the radio carrier resources are split between 2 antennas in the time domain, avoiding signal power loss when using an RF splitter.
The output from one MultiSector antenna can be configured as self-backhaul to carry traffic from all other antennas to the hub site, eliminating the need for a Point-to-Point (PtP) radio.
The unit is fed through a single PoE and can be connected to the WAN over SFP
MultiSector Connectorized highlights:
» Dual carrier base station » Up to 1.5Gbps » Up to 4 MIMO 2x2 external antennas » Built-in Switch and GPS for synchronization » Feed by single PoE » WAN connection over SFP or PoE » Optional self-backhaul » Compatible with existing RADWIN Subscriber Units (SUs)
