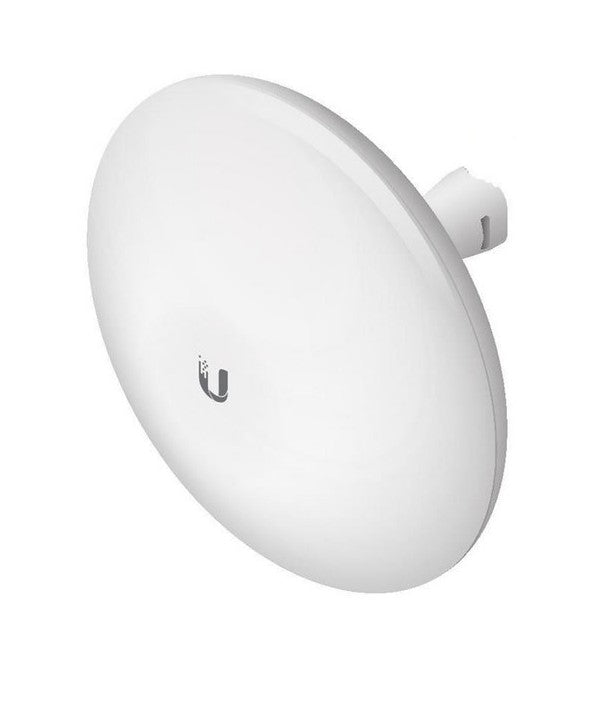

Technical Specifications

Mechanical
Dimensions 140 x 140 x 54 mm (5.5 x 5.5 x 2.1")
Weight 320 g (0.7 lb)
Enclosure material Outdoor UV-stabilized plastic
Mounting Pole-mount (Kit included), wall-mount
Wind loading 21.4 N @ 200 km/h (4.8 lbf @ 125 mph)
Wind survivability 200 km/h (125 mph)
Mechanical
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.5A PoE adapter (Included)
Supported voltage range 20–27V DC
Max. power consumption 6W
ESD/EMP protection Air/contact: ± 24 kV
LEDs (1) Power, (1) LAN, (4) WLAN, signal srtength
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G Method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F),
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4,
Equivalent: MIL-STD-810 G method 506.5
Ambient operating temperature -40 to 70° C (-40 to 158° F)
Ambient operating humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE, RoHS
System
Gain 16 dBi
Channel sizes 5/8/10/20/30/40 MHz
Max. VSWR 1.5:1
Polarization Dual linear
Operating Frequency MHz
Worldwide 5150 - 5875
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
